Rectangular and triangular generator (CB21333E)

Details
Written by: Newton C. Braga

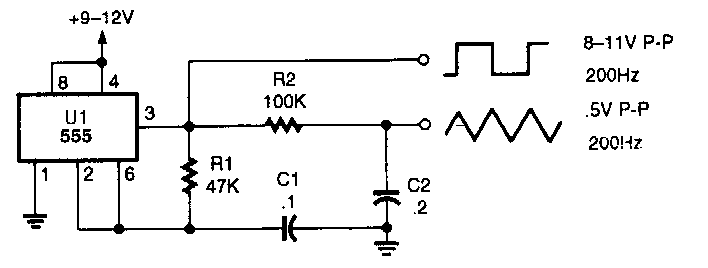

This circuit, based on a 555, was found in a Popular Electronics from the 90s. The circuit has the frequency determined by R1, R2 and C1.
