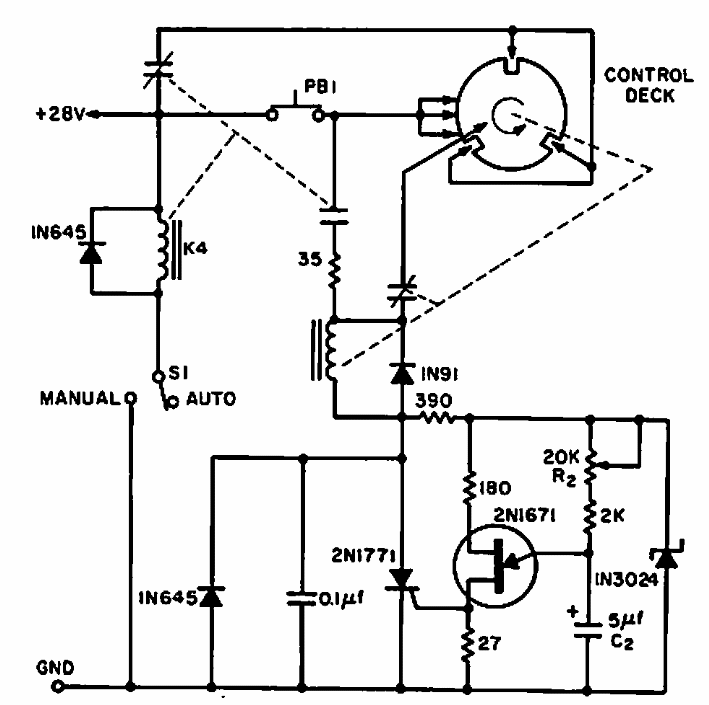

20 to 200 ms steps for stepper motor (CB21415E)

This circuit is from an old American documentation. The circuit generates 20 to 200 ms steps for stepper motors.

| Clique na imagem para ampliar |
