Up to 3 minutes timer (CB21429E)

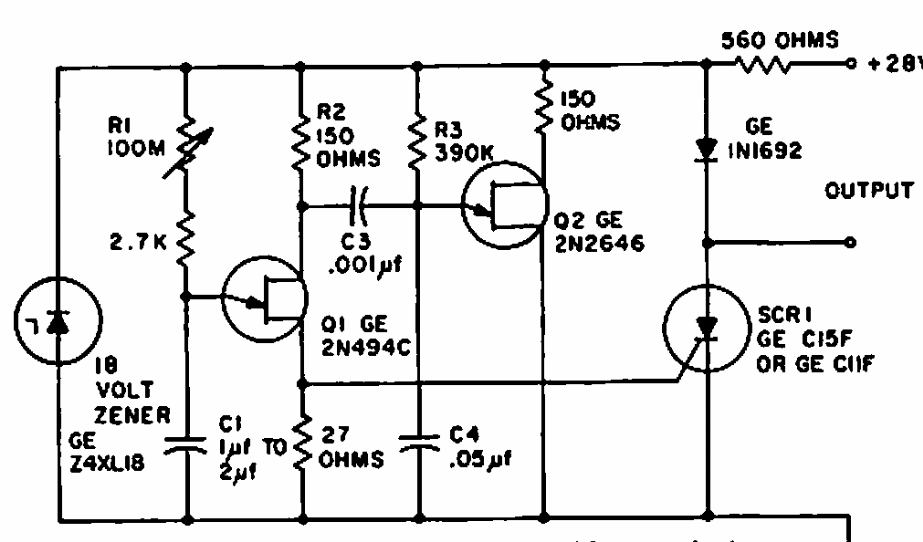

We found this circuit in a 1967 General Electric SCR manual. The time is set to R1 and depends on C1 which must be a low-leak capacitor.

| Clique na imagem para ampliar |

Current Monitor with Isolated Output (CB5249E)
This 48 V circuit with a capacity of up to 105 V was found in a 2005 Linear Technology manual. The...
Generator Mode Photo Receiver (CB14695E)
The selected circuit in the Texas Instruments opto-electronics manual works with photoelectric sensors in...
Missing Pulse Detector (CB6110E)
This circuit is from 1964 documentation but can be easily implemented based on current components....
