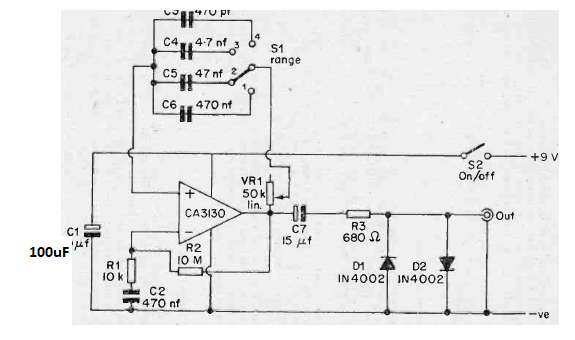

This current source circuit with the CA3130 was found in a 1977 publication. The circuit provides currents up to 20 mA and does not need a symmetric power source.
Low current source (CB21990E)
- Details
- Written by: Newton C. Braga
This current source circuit with the CA3130 was found in a 1977 publication. The circuit provides currents up to 20 mA and does not need a symmetric power source.
