Combinational logic multiplexer (CB21027E)

Details
Written by: Newton C. Braga

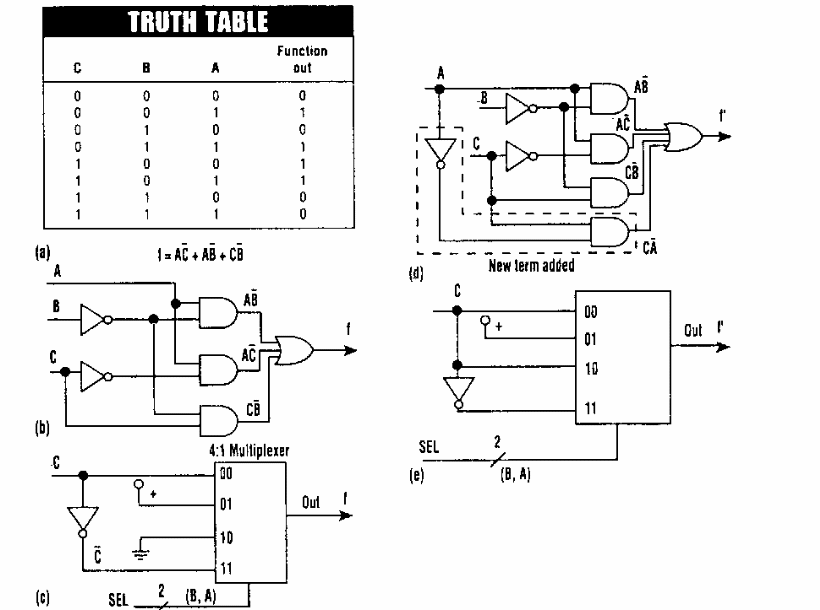

Found in an Electronic Design from the 90s, this circuit provides outputs according to the input following the truth table given next to the diagram. The various options are shown.




| Clique na imagem para ampliar |
