6-minute timer (CB21414E)

Details
Written by: Newton C. Braga

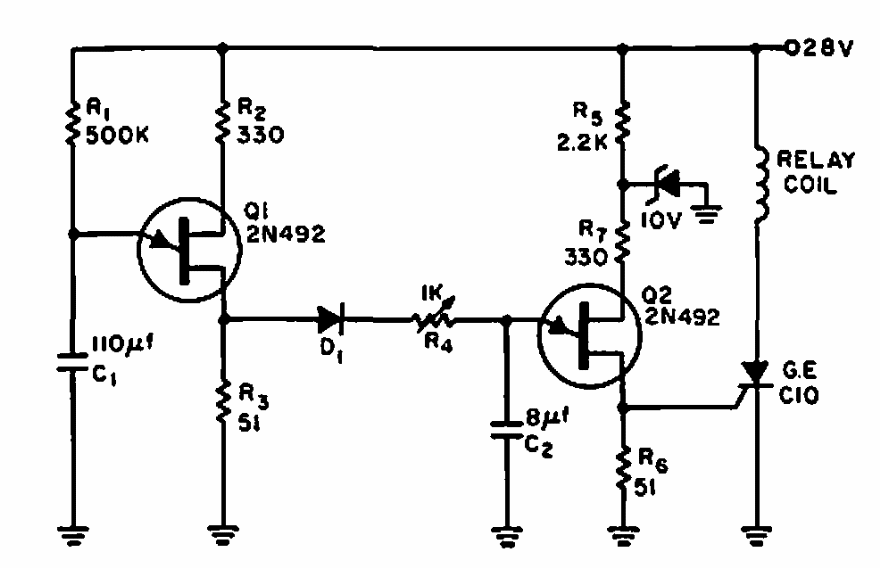

This timer with two unijunction transistors and one SCR was found in an American documentation from 1964. The unijunction transistors could be the 2N2646.




| Clique na imagem para ampliar |
