Variable timer (CB21428E)

Details
Written by: Newton C. Braga

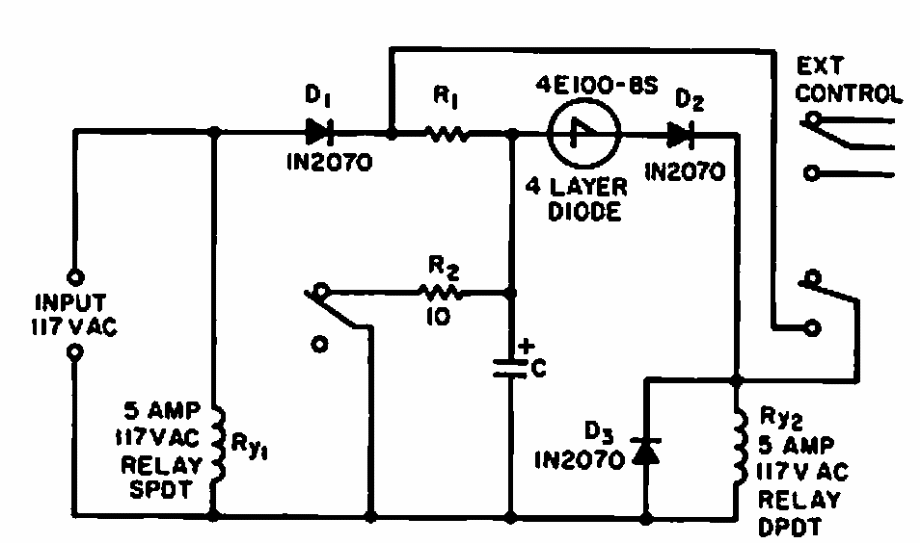

We found this circuit in an Electronic Design from 1965. The 4-layer diode is an unusual component these days and can be used in its place with a diac.
