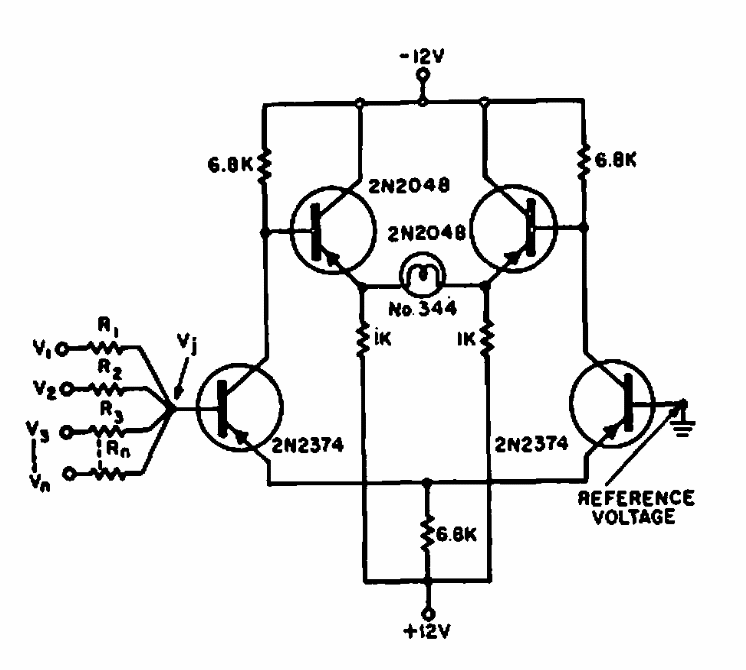

Triple voltage monitor (CB21516E)

Found in older American documentation, this circuit can monitor 3 or more voltages determined by resistors. Components admit equivalents.
