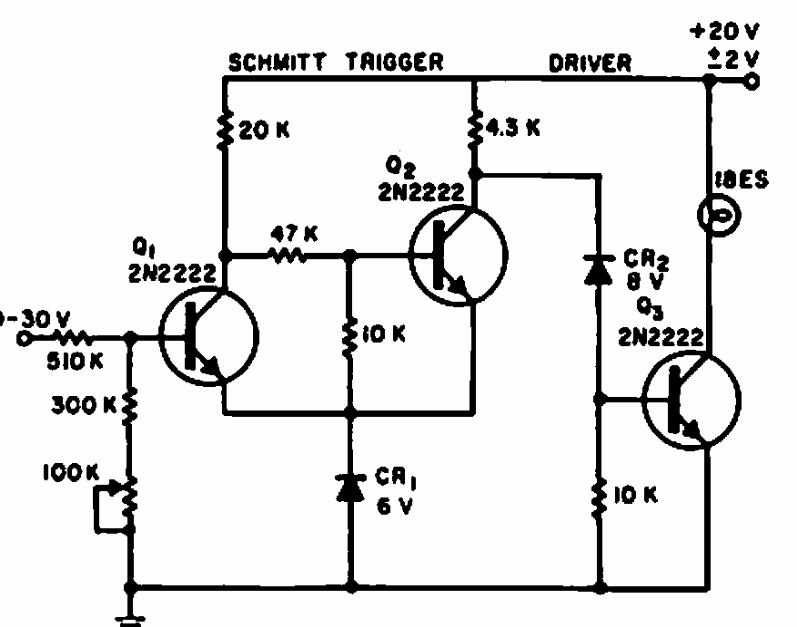

The purpose of this circuit is to improve a trigger circuit using a zener diode. The circuit was found in an American documentation from 1964. It can be improved using equivalent modern components.
| Clique na imagem para ampliar |
Zener triggering (CB21472E)
- Details
- Written by: Newton C. Braga
