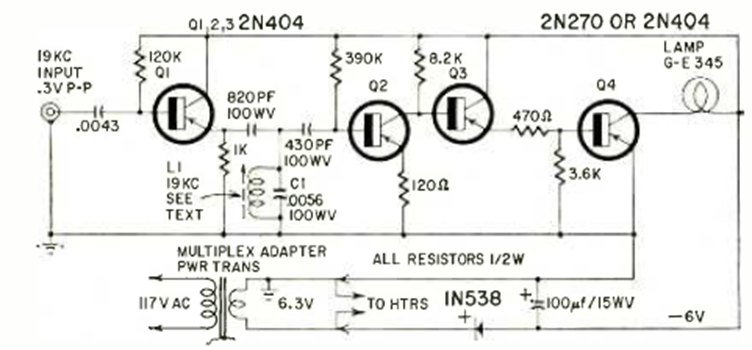

This circuit was found in a Radio Electronics magazine from August 1963. The transistors are contemporary types, and the indicator is a common incandescent lamp. The circuit is excited by the signal from the receiver's IF amplification stages.
