Baby alarm (CB22184E)

Details
Written by: Newton C. Braga

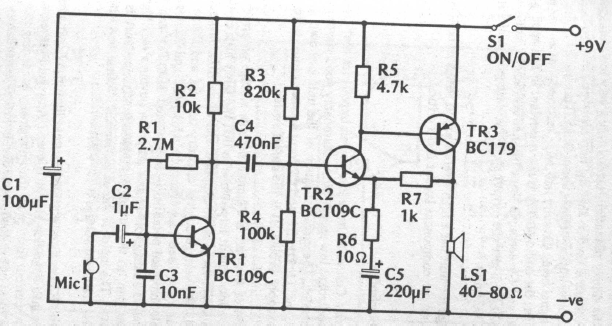

This circuit was found in an English documentation from 1989. The transistors support general-purpose equivalents. The microphone is a sensitive crystal or ceramic type.
