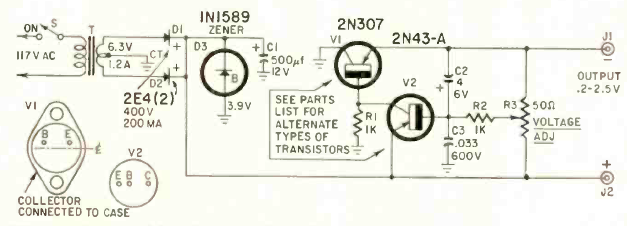

This power supply circuit, slightly different from the conventional one, was found in the Radio Electronics magazine of April 1961. The power transistor must be equipped with a heat sink. The current is 1.7 A.
