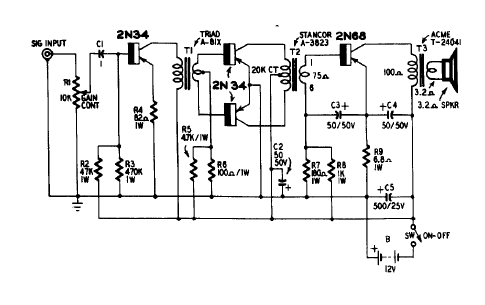

This circuit is from an American publication from the 60's. The power is on the order of 600 mW. The coupling between the steps is done by a transformer.
Class A power amplifier (CB22236E)
- Details
- Written by: Newton C. Braga
This circuit is from an American publication from the 60's. The power is on the order of 600 mW. The coupling between the steps is done by a transformer.
