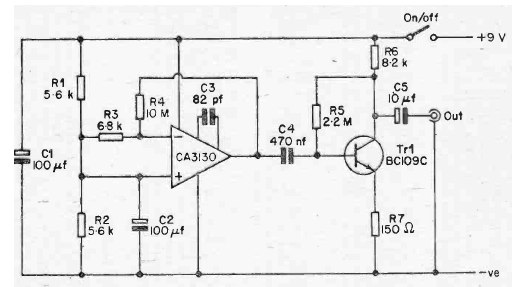

Using a CA3130 operational amplifier, this circuit was found in an English publication from 1977. The circuit does not need a symmetric power source and the transistor can be BC548.
White noise generator (CB22010E)
- Details
- Written by: Newton C. Braga
