NAND RC Oscillator (CB22374E)
- Details
- Written by: Newton C. Braga

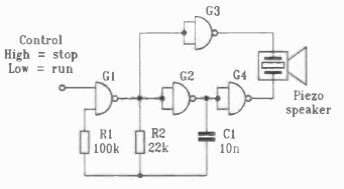

This circuit generates signals that depend on resistors and capacitor, producing a tone in a piezoelectric transducer. The oscillator is controlled by logic levels.
