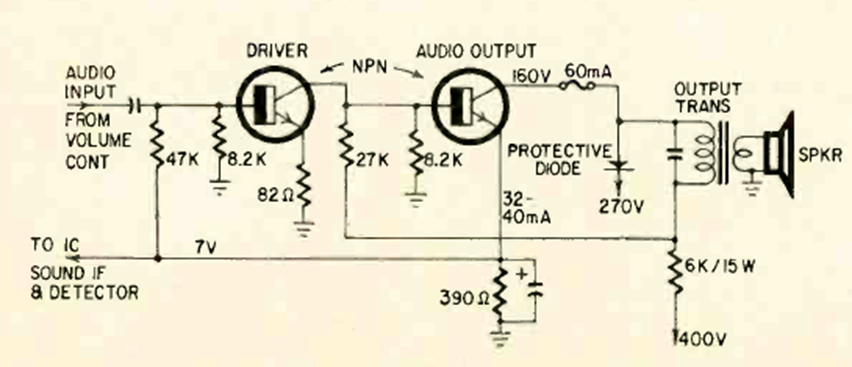

This is the typical audio amplifier for a 1967 television. We found it in a magazine from the time. Note the use of the output transformer and the high supply voltage. The circuit is an RCA CTC21.
| Clique na imagem para ampliar |
TV Audio Amplifier (CB23764E)
- Details
- Written by: Newton C. Braga
