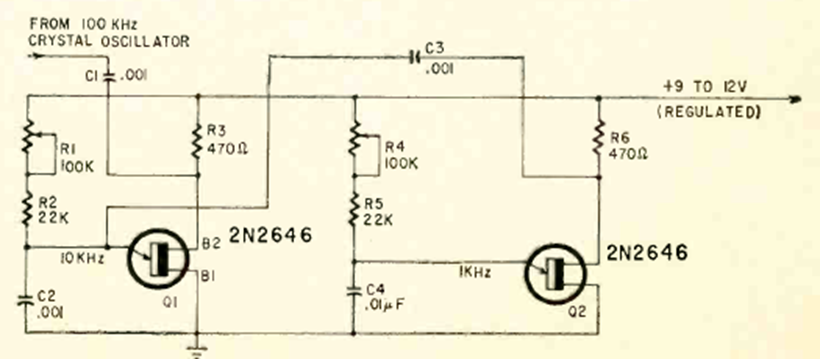

This unijunction transistor circuit is a frequency divider synchronized to 100 kHz. The circuit was found in a Radio Electronics from July 1968. The adjustment of R4 is important.
| Clique na imagem para ampliar |
Synchronized splitter 2N2646 (CB23918E)
- Details
- Written by: Newton C. Braga
