The oscillator circuit is an ICM7556, the dual CMOS version of the 555. The frequency depends on the capacitor and for this circuit with 22 nF it is around 1 kHz.

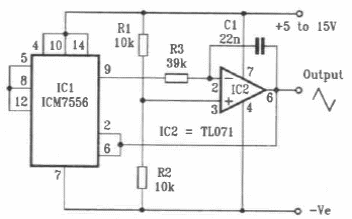

Triangular generator (CB22370E)
- Details
- Written by: Newton C. Braga
The oscillator circuit is an ICM7556, the dual CMOS version of the 555. The frequency depends on the capacitor and for this circuit with 22 nF it is around 1 kHz.
