Voltage Controlled Oscillator 555 (CB22368E)
- Details
- Written by: Newton C. Braga

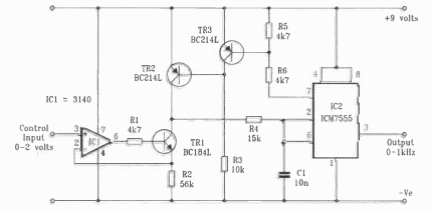

Using the CMOS version of the 555, this circuit generates voltage-controlled signals in a range that depends on the value of capacitor C1. The signals are rectangular.
