EMC 210 Transistor Test (CB22544E)

Details
Written by: Newton C. Braga

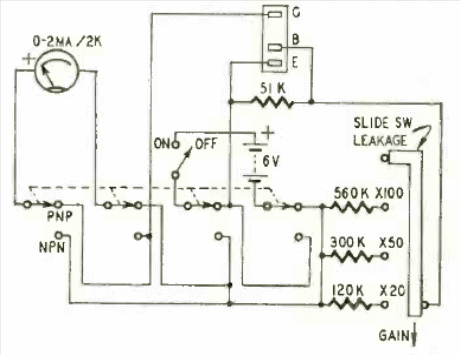

This commercial transistor test circuit uses a 6V battery and 2mA analog indicator. The circuit is in Radio Electronics magazine from March 1958.
