Zener and SCR Oscillator (CB22095E)

Details
Written by: Newton C. Braga

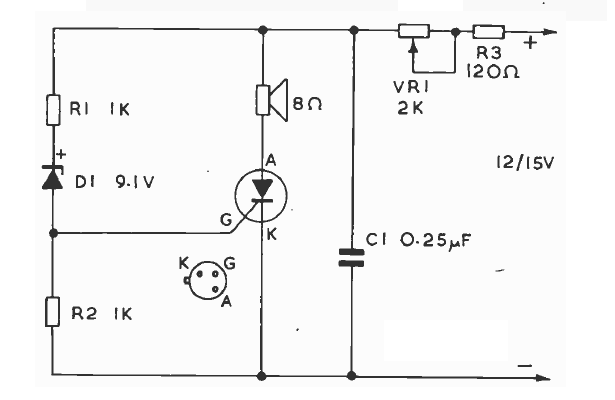

This interesting oscillator was obtained from an old documentation. In principle any 106 series SCR works. The zener must have a voltage lower than that used in the power supply.
