555 1 kHz oscillator (CB22367E)

Details
Written by: Newton C. Braga

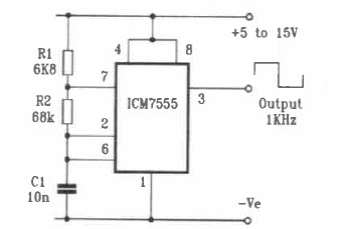

Using the ICM7555, CMOS version of the 555, this circuit produces a 1 kHz signal. The circuit has rectangular signals with good intensity.
