Field Strength Meter (CB22025E)

Details
Written by: Newton C. Braga

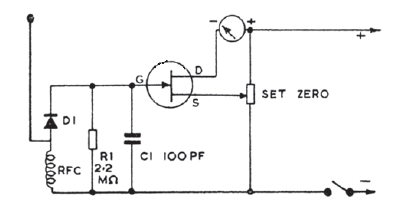

This aperiodic circuit was found in an old English documentation. The transistor can be any JFET and the instrument 100 uA full scale.
