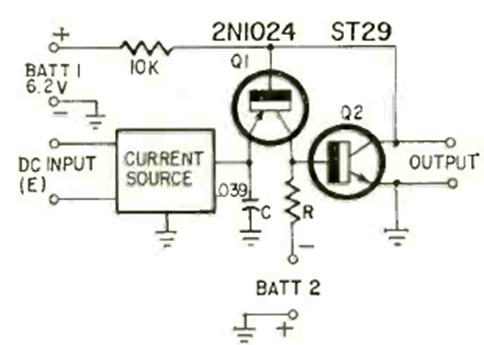

This circuit is from a Radio Electronics from February 1964. The circuit uses period transistors and is battery powered. The central frequency of the oscillator is determined by capacitor C and resistor R.
Current Controlled Oscillator (CB23635E)
- Details
- Written by: Newton C. Braga
