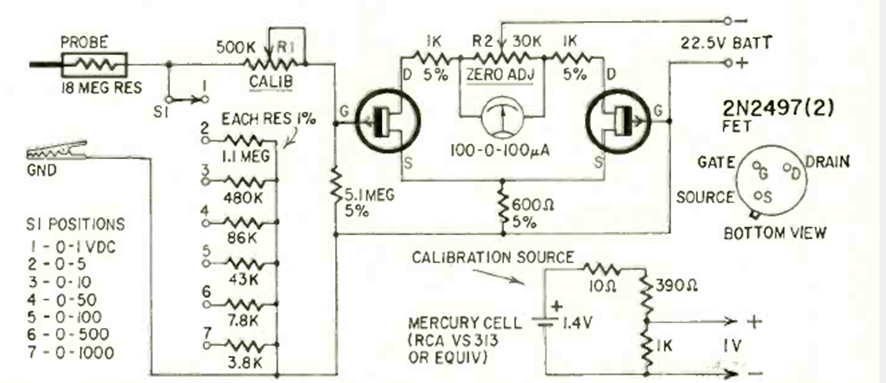

This circuit was found in a Radio Electronics from May 1965. FETs are from the time, but the circuit can be implemented with practically any FET. Accuracy depends on the selected ranges resistors.
| Clique na imagem para ampliar |
Differential voltmeter with FETs (CB23655E)
