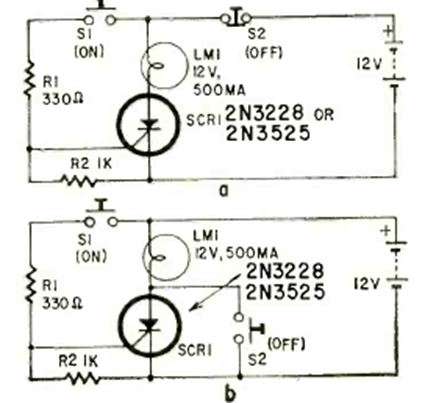

On/Off Switch with SCR (CB23945E)

This bistable circuit with SCR for direct current was found in the Radio Electronics magazine of June 1969. The SCR is any type such as TIPC106.
