Tesla Coil Without Semiconductors (CB22477E)

Details
Written by: Newton C. Braga

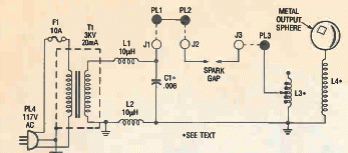

This is a basic version of the Tesla coil that does not use semiconductor devices, found in an old Popular Electronics. The circuit uses a transformer of the type used in old 3kV neon signs.
