2-way intercom (CB23561E)

Details
Written by: Newton C. Braga

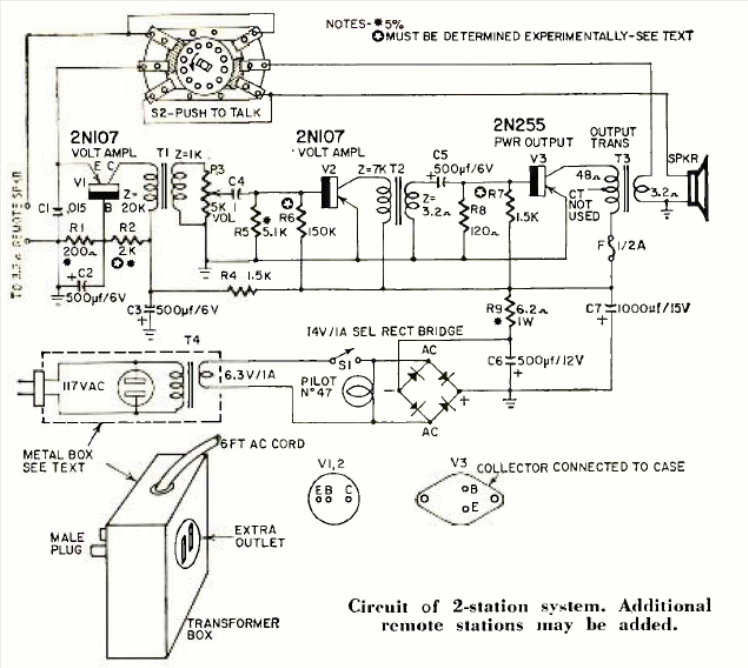

This circuit was found in Radio Electronics magazine from June 1958. The maximum distance depends on cable losses. More stations can be added.
