Automation with lock using relays (CB23776E)

Details
Written by: Newton C. Braga

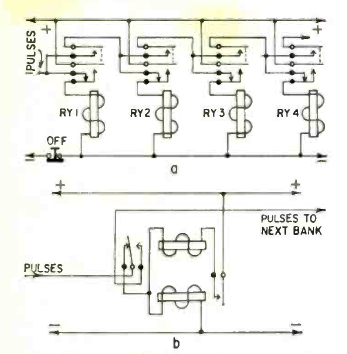

This configuration for latching automation using relays was found in Radio Electronics magazine from October 1961. The circuit uses relays according to the control voltage.
