Slot Machine (CB24600E)

Details
Written by: Newton C. Braga

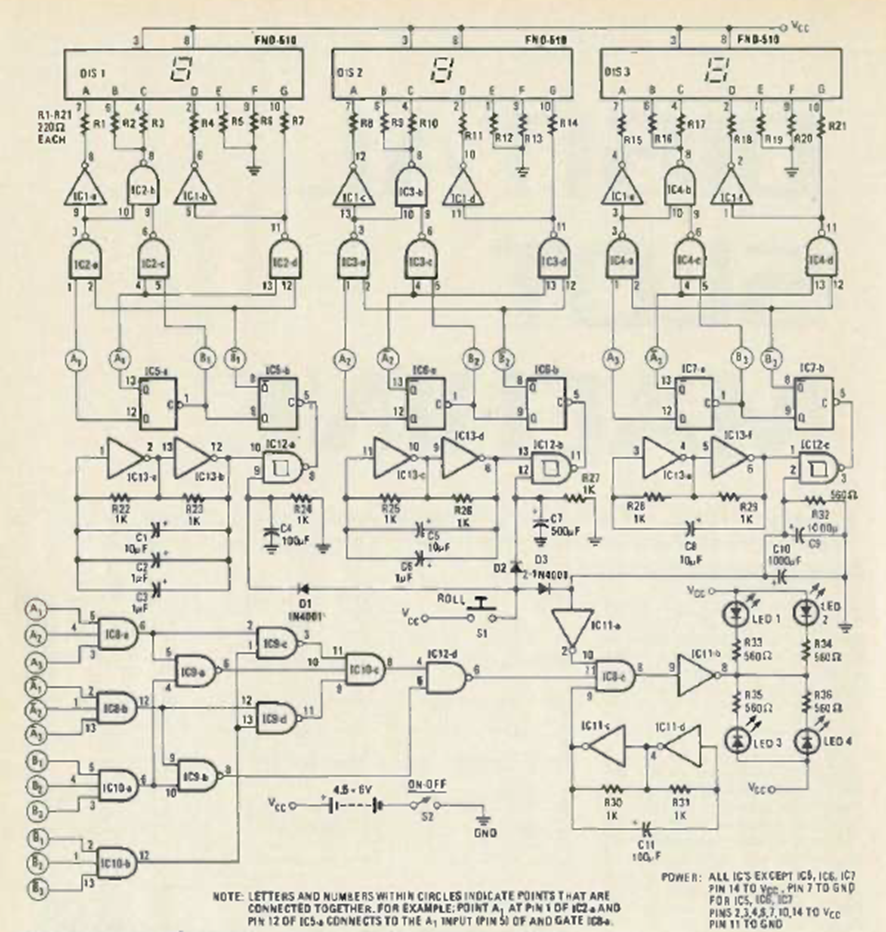

This circuit was found in the January 1980 issue of Radio Electronics magazine. It is a digital slot machine using common logic circuits. It can still be easily assembled today.




| Clique na imagem para ampliar |
