Monochrome Modulator (CB24557E)

Details
Written by: Newton C. Braga

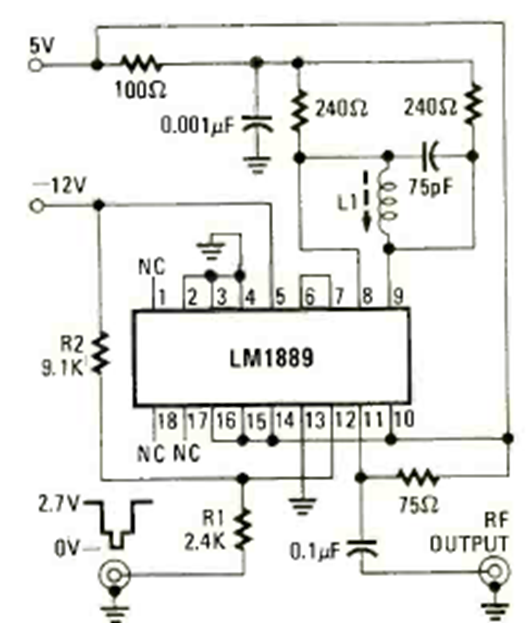

This circuit for old analog TV was found in the May 1978 issue of Radio Electronics magazine. The circuit was used as a modulator for video games.
