X-ray detector (CB24101E)

Details
Written by: Newton C. Braga

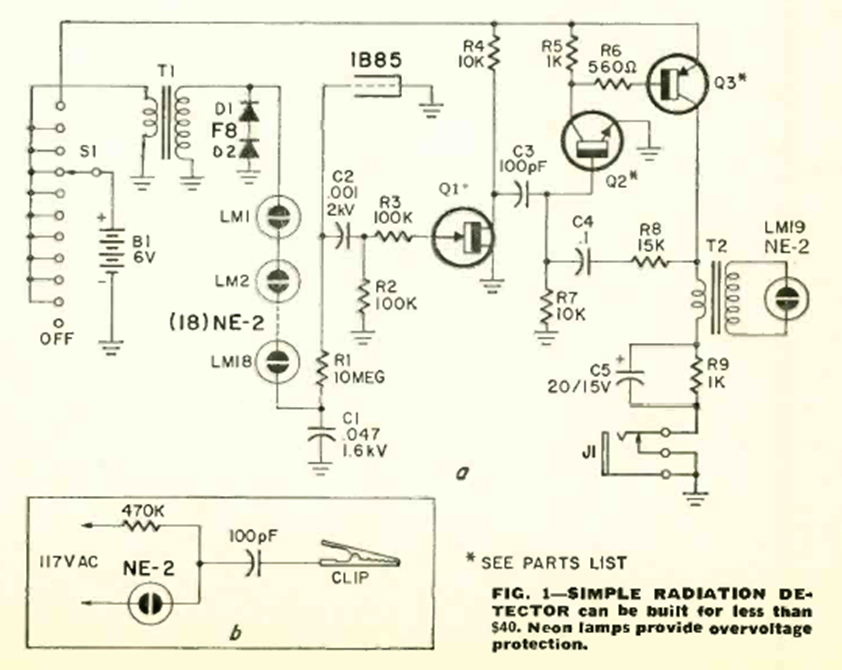

This circuit was published in a January 1971 issue of Radio Electronics to check television emissions. The circuit uses a Geiger IB85 tube of the time whose address for purchase was given by the magazine.
