Hexadecimal display circuit (CB24921E)

Details
Written by: Newton C. Braga

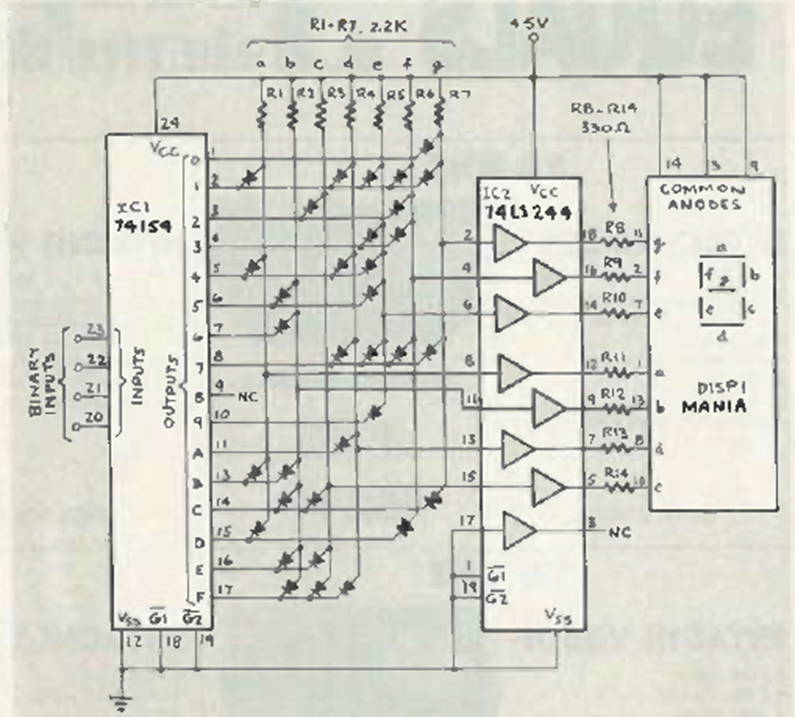

We found this circuit in the November 1985 issue of Radio Electronics magazine. It uses TTL technology and has binary inputs. The circuit must be powered by 5 V.




| Clique na imagem para ampliar |
