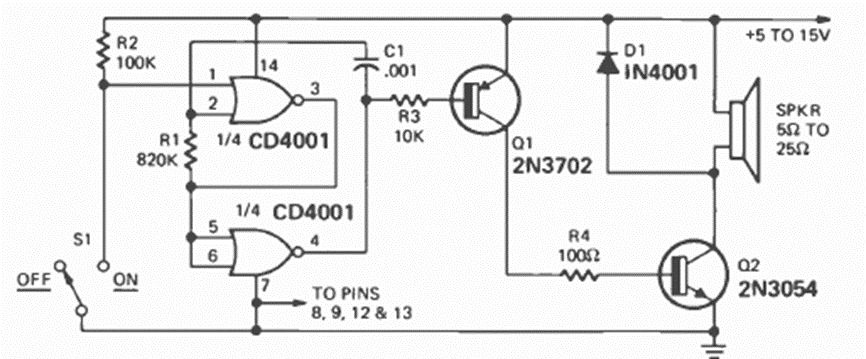

This alarm circuit was recommended by Radio Electronics magazine in December 1974. The power transistor can provide outputs from 0.25 W to 11 E depending on the power supply and must be mounted on a heat sink.
| Clique na imagem para ampliar |
Power Oscillator 4001 (CB24352E)
- Details
- Written by: Newton C. Braga
