Benchtop Power Supply (CB24961E)

Details
Written by: Newton C. Braga

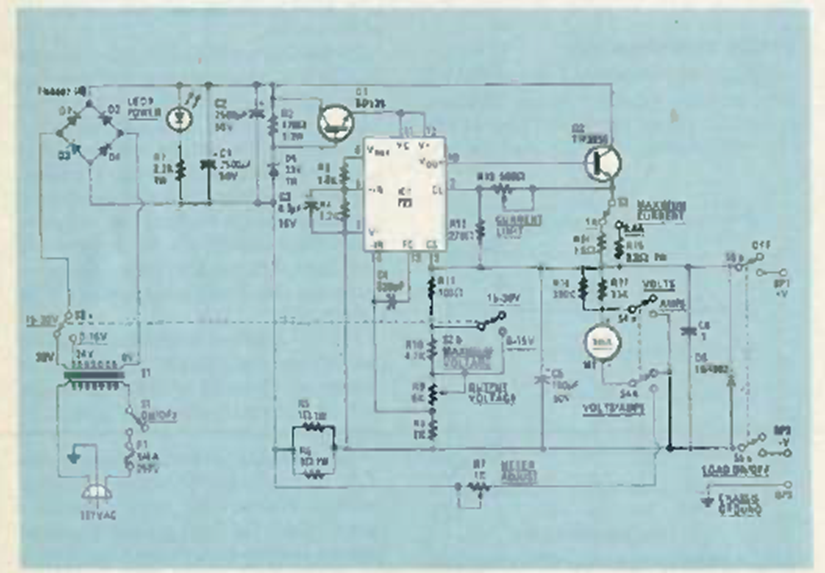

This variable 1 A power supply with voltages up to 30 V was found in an article in June 1986 Radio Electronics magazine. The 723 IC is well known to magazine readers of the time and even today.
