Power Control (CB24808E)

Details
Written by: Newton C. Braga

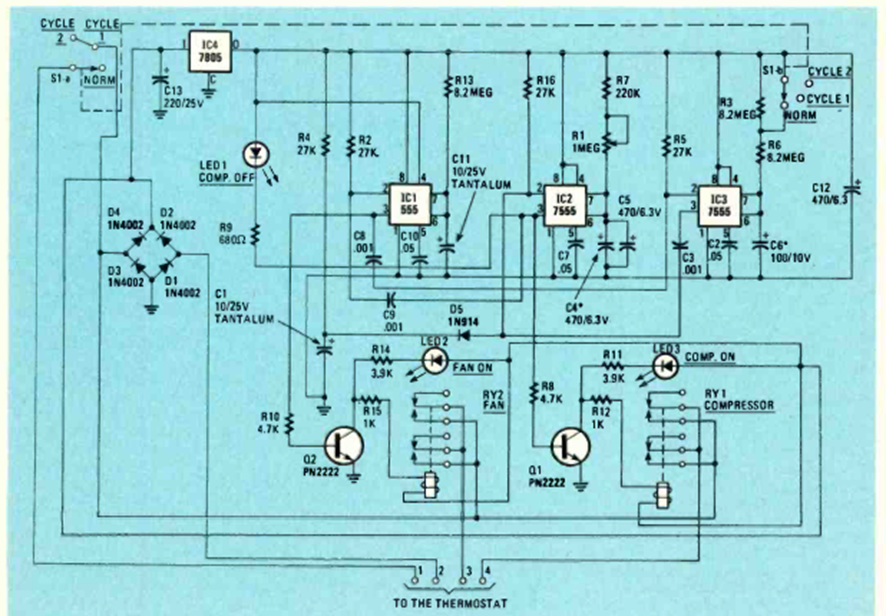

This circuit, to control air conditioning systems, was found in July 1984 Radio Electronics magazine. The circuit is for old types of the time that did not have microcontroller control.
