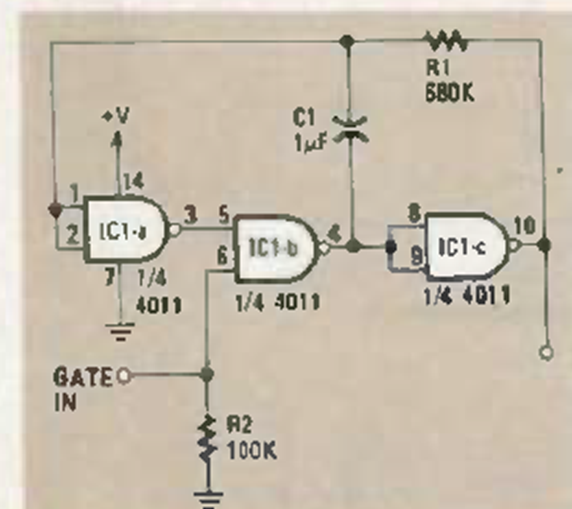

Using three gates of t4011 this oscillator produces a rectangular signal with frequency given by R1 and C1. The triggered circuit is from a Radio Electronics magazine from November 1984.
4011 Ring Oscillator (CB24864E)
- Details
- Written by: Newton C. Braga
