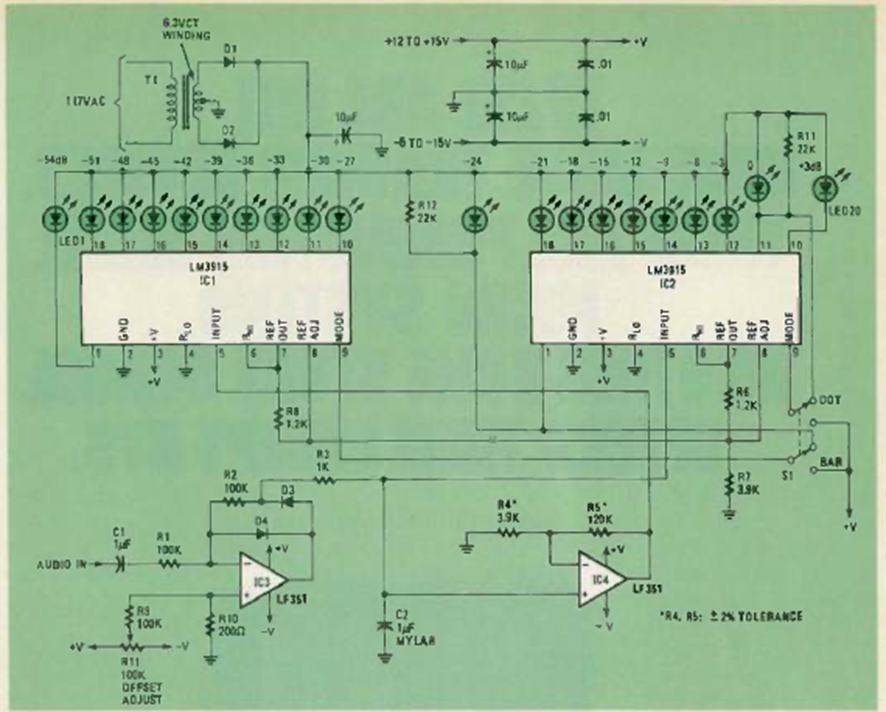

In the figure we have a circuit in which two moving bar/dot indicators are connected together to increase the number of LEDs. The circuit is from a Radio Electronics from October 1980.
| Clique na imagem para ampliar |
Cascading the LM3914 (CB24656E)
- Details
- Written by: Newton C. Braga
