Power Outage Alarm (CB24152E)

Details
Written by: Newton C. Braga

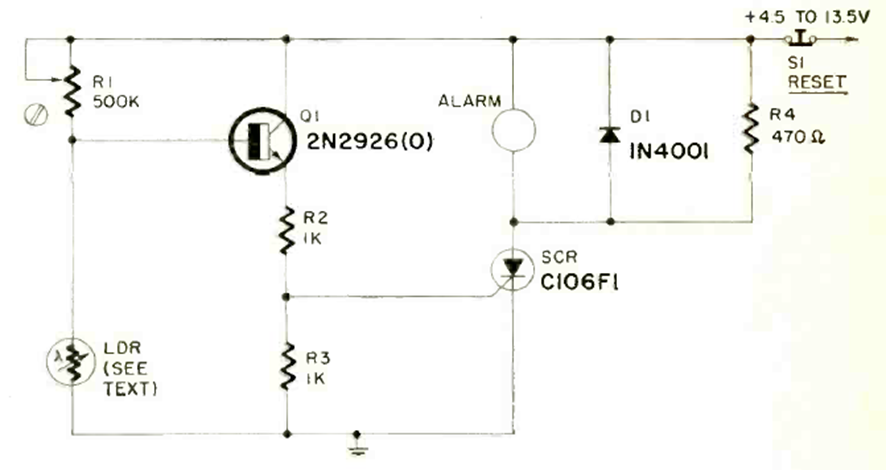

This sensitive circuit was found in the August 1971 issue of Radio Electronics magazine. The SCR is equivalent, and the transistor may be a BC548. The load may be a relay.




| Clique na imagem para ampliar |
