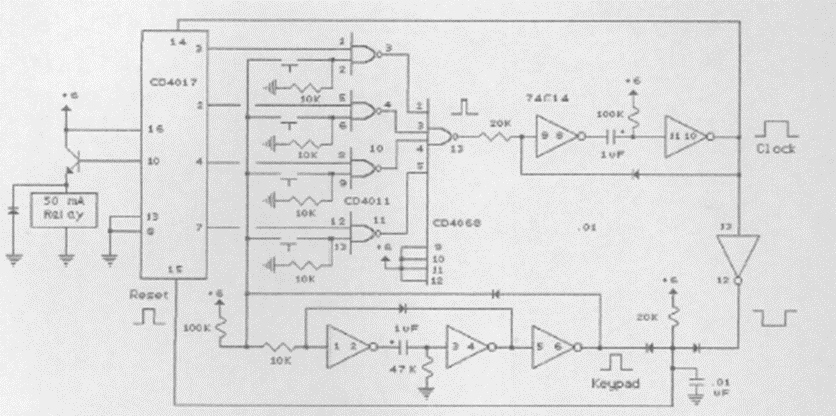

We found this circuit in documentation from the 90s. The circuit has 4 pushbuttons and is powered by voltage according to the relay. The circuit uses CMOS logic and can be modified for more switches.
| Clique na imagem para ampliar |
Digital code switch (CB24425E)
- Details
- Written by: Newton C. Braga
