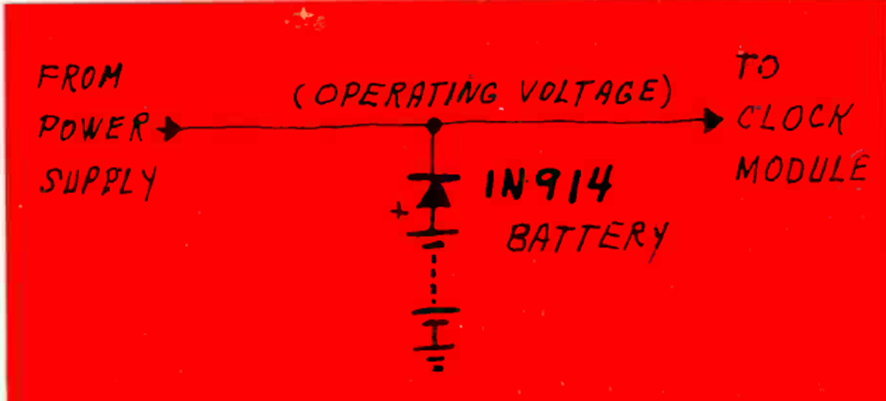

The figure shows a simple way to have emergency power for a 9 V circuit powered by a source. If the source fails, the 9 V battery comes into action. This can be done with batteries of other voltages.
| Clique na imagem para ampliar |
Backup for batteries (CB24731E)
- Details
- Written by: Newton C. Braga
