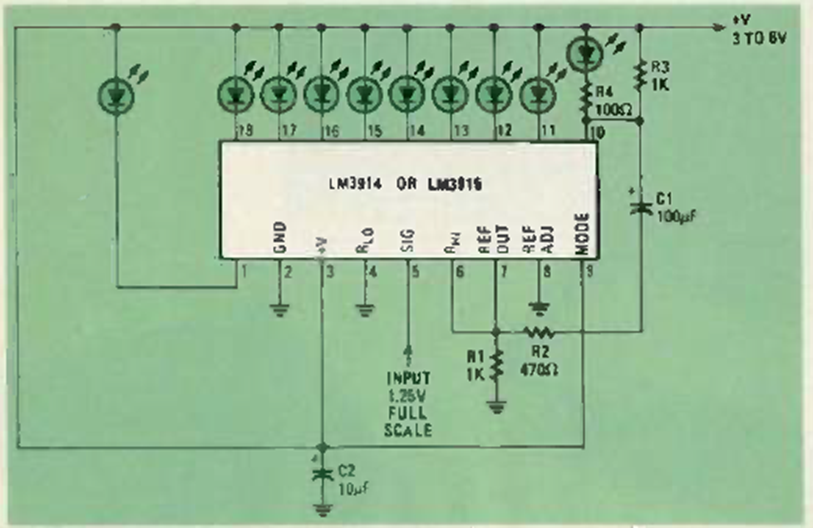

This circuit is from an October 1980 Radio Electronics magazine. The circuit indicates when the maximum voltage range set by the LM3914 exceeds its end.
| Clique na imagem para ampliar |
LM3914 Overrange Indicator (CB24657E)
