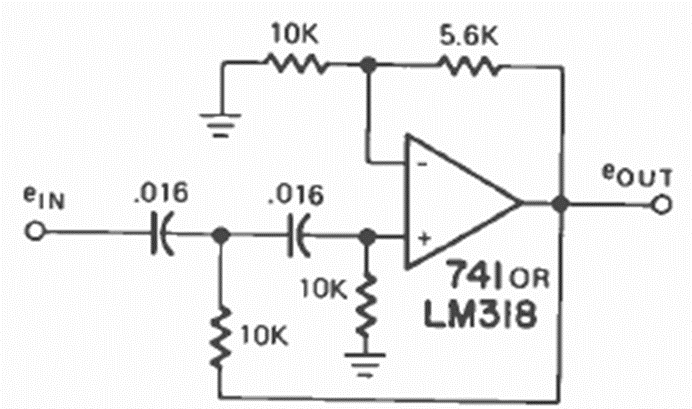

Using the 741 this basic circuit was found in the November 1973 Radio Electronics magazine. The power supply must be symmetrical. The components can be recalculated for other frequencies.
| Clique na imagem para ampliar |
1 kHz High Pass Filter (CB24267E)
