Pulsating Buzzer (CB24716E)

Details
Written by: Newton C. Braga

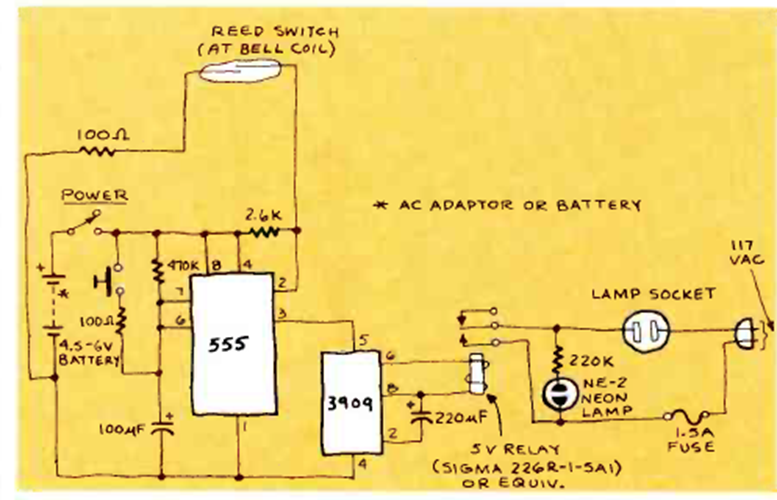

Found in the September 1982 issue of Radio Electronics magazine, this circuit triggers a relay intermittently. Triggering is done by a reed switch, but other types of sensors can be used.
