Crowbar with SCR (CB24574E)

Details: Written by: Newton C. Braga

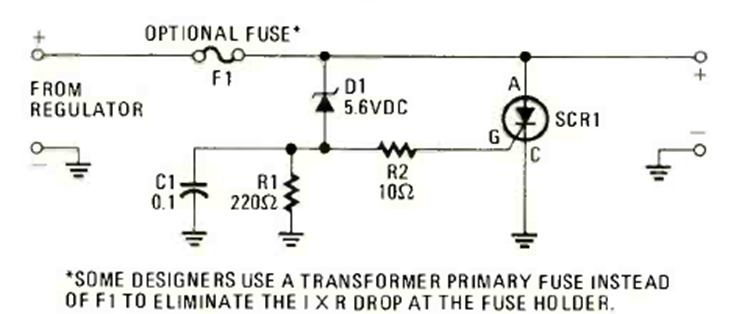

This power supply protection circuit was found in the December 1978 Radio Electronics magazine. The SCR is triggered by shortening the power supply and quickly blowing the protection fuse.

| Clique na imagem para ampliar |
