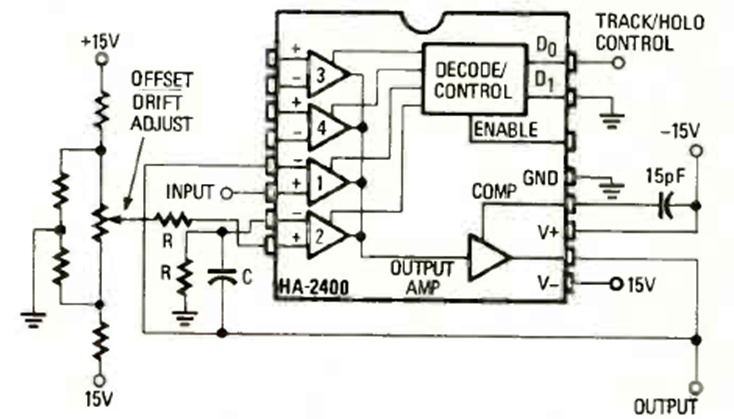

This circuit using the newly released HA2400 was found in the March 1980 Radio Electronics magazine. The power supply should be symmetrical, and the values of R and C chosen according to the type of signal.
| Clique na imagem para ampliar |
Sample and Hold (CB24626E)
