Open Collector TTL Gate (CB24884E)

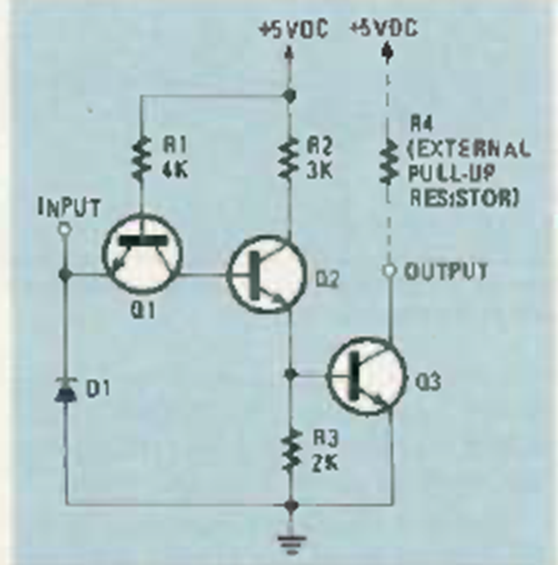

This is a discrete equivalent version of an open collector TTL gate. What we have is an inverter circuit with 3 common transistors.
