AC and DC Full Wave Rectifier LM741 (CB25221E)

Details
Written by: Newton C. Braga

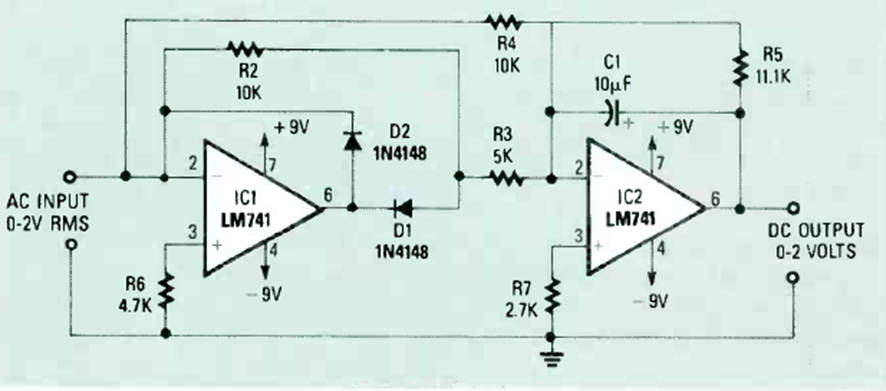

This circuit with two operating modes was found in the September 1989 issue of Radio Electronics magazine. Other operational amplifiers can be used. The power supply must be dual.
