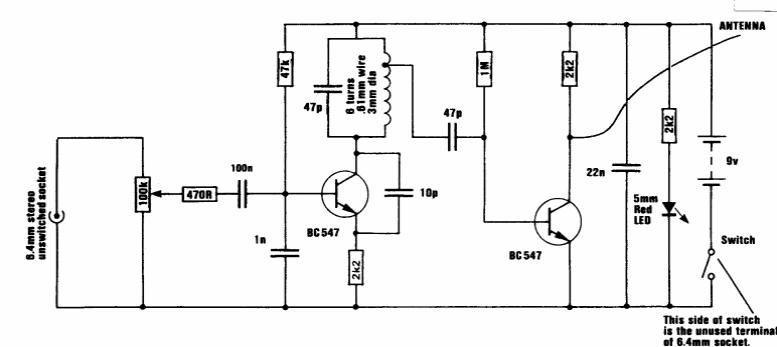

We found this circuit in an Australian publication from 1991. It is a kit of the time with input for a guitar pickup. The range is a few tens of meters.
| Clique na imagem para ampliar |
Guitar Transmitter (CB21871E)
- Details
- Written by: Newton C. Braga
