Two SCR dimmer (CB7206E)

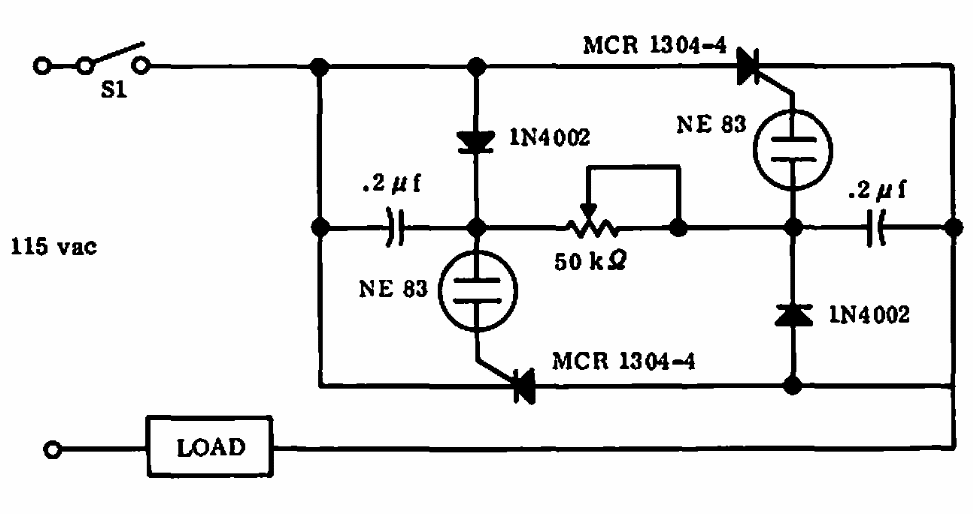

This circuit was found in a Motorola Manual of 1965. The circuit has neon lamps as trigger elements. Equivalent SCRs can be used.

| Clique na imagem para ampliar |

Solar telephone (CB20504E)
This low-power intercom can be powered by solar cells. The circuit is two-way, with an integrated of the...
Regulator from 0 to 25 V x 1 A (CB1193E)
The advantage of this circuit lies in the fact that it does not need a negative source to generate...
Octal Transparent Latch (CB4619E)
The circuit shown in the figure can be used on a data transfer bus using an appropriate family...
